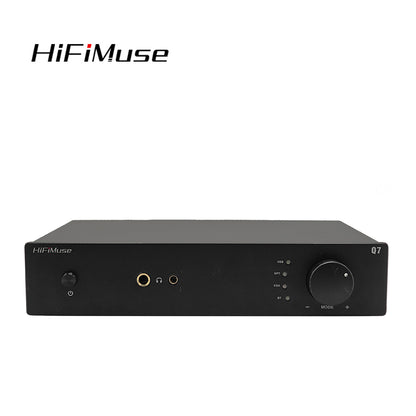

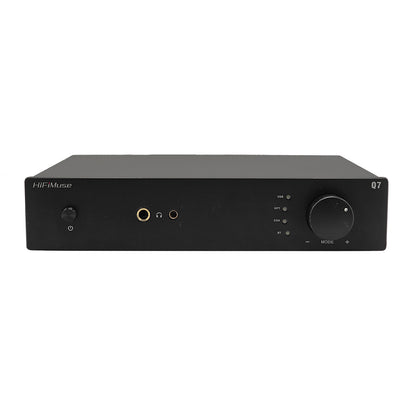

HiFiMuse Q7 Bluetooth 5.2 Transmitter and Receiver
HiFiMuse Q7 Bluetooth 5.2 Transmitter and Receiver
Product Parameters:
1.Configuration/Model：Q7
2.Color:Black
3.Body Material:Aluminum Panel + lron Case
4.Audio DAC: ES9039Q2M*2
5.Audio Processor:Second generation XMOS interface 8-core processor XU208 Amplifier
6.Amplifier:JRC5535*2 OPA1642*1
7.Power Supply:Square Transformer
8.Bluetooth Audio Input:Qualcomm Qcc3040 Bluetooth Module / Bluetooth version:5.2 SupportS APTX/APTX-LL/APTX HD/SBC/AAC Bluetooth audio protocols
9.USB AudioCompatibility: Windows 7-11,Mac / Android, ios
10.USB-B DAC Inputs:Supports up to stereo DSD512 PCM384KHZ 32Bit
11.Optical AudioInput:Supports up to PCM 192KHz 24Bit
12.Coaxial Audio Input:Supports up to PCM 192KHz 24Bit
13.Analog Audio Output:"Preamp output: XLP (balanced) + RCA
Earphone output: 6.35 single-ended + 4.4 balanced"
14.Control Mode.Knob control+ remote control
15.Recommended Headphone lmpedance:16-300Q/single-ended,16-6000/balanced
16.XLP Output Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB Total Harmonic Distortion (THD+N):-97dB@1khz Noise:1uVrms Signal-to-Noise Ratio (SNR): 120dB@1kHZ Frequency Response:20-20kHz(±0.07dB) Channel separation (CROSSTALK):-110dB Dynamic Range(DNR):120dB@1kHZ
17.RCA Outputs Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB Total Harmonic Distortion(THD+N):-97dB@1kHZ Noise:3uVrms Signal-to-Noise Ratio (SNR):116dB@1kHZ Frequency Response:20-20kHz(±0.06dB) Channel separation (CROSSTALK):-108dE Dynamic Range(DNR):116dB@1kHZ
18.Headphone Output Audio Characteristics (6.35 single-ended):Output Level(Vrms):2.9Vrms@0dB Maximum Undistorted Power:360mW@16Q/28mW@3000 Total Harmonic Distortion(THD+N):-96dB@1kHz Noise:3uVrms Signal-to-Noise Ratio (SNR):116dB@1kHz Frequency Response:20-20kHz(±0.06dB) Channel separation (CROSSTALK):-108dB Dynamic Range(DNR):116dB@1kHZ
19.Headphone OutputAudio Characteristics(4.4 Balanced):Output Level(Vrms):5.9Vrms@0dB Maximum Undistorted Power:1000mW@16Q/56mW@6000Ω Total Harmonic Distortion(THD+N):-96dB@1kHZ Noise:1uVrms Signal-to-noise ratio (SNR): 120dB@1kHZ Frequency Response:20-20kHz(士0.07dB) Channel separation (CROSSTALK): -110dB Dynamic Range(DNR):120dB@1kHZ
20.Power input:AC 110V 50Hz/AC 220V 50Hz
21.Rated Power Consumption:15W
Couldn't load pickup availability
High-resolution audio decoder and amplifier in one unit

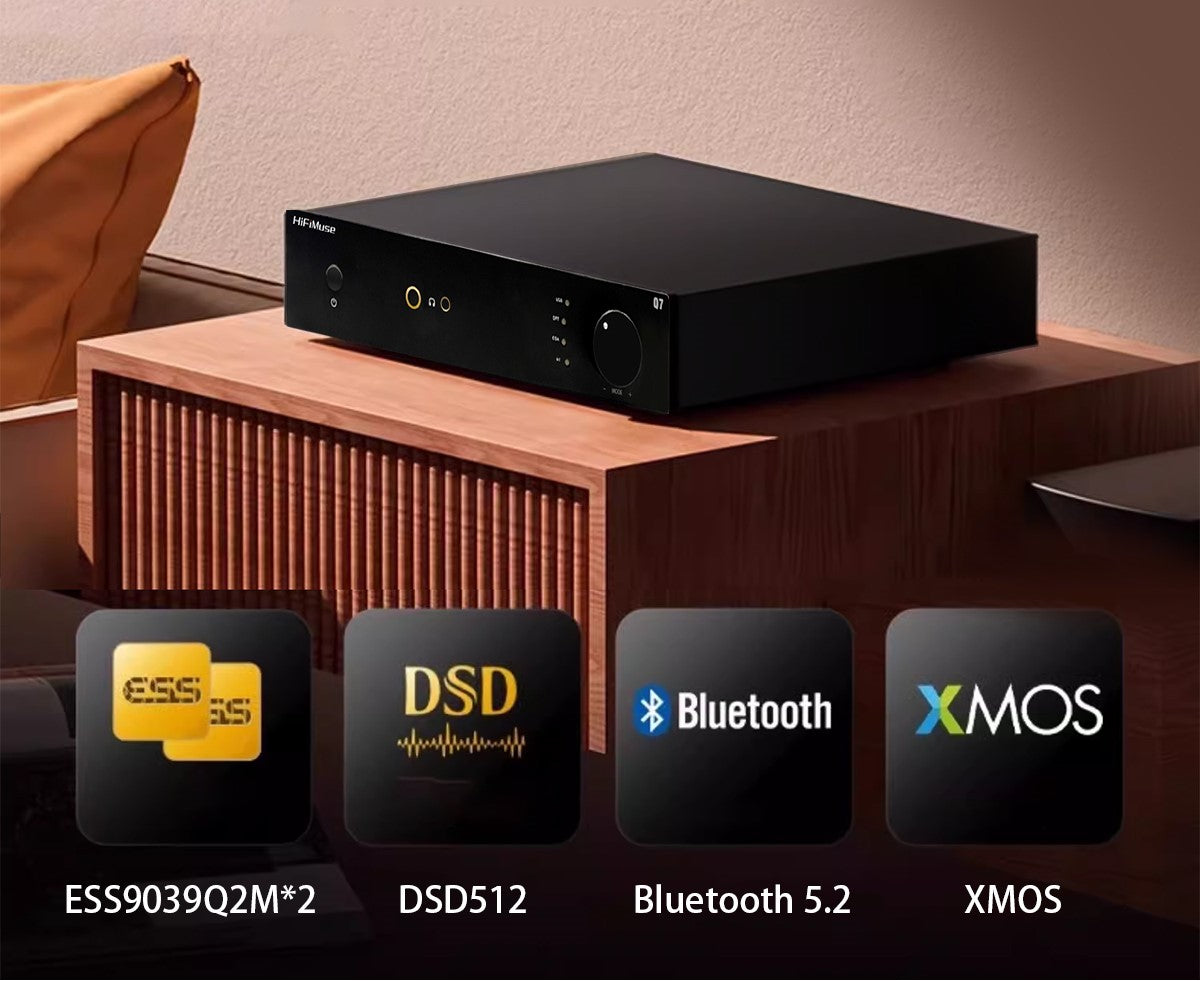

ESS9039Q2M*2 / DSD512 / Bluetooth 5.2 / XMOS
Audiophile Configuration
ESS 9039Q2M Professional audiophile core / Bluetooth 5.2 QCC3040 module / XMOS Octa-core processor (XU208) / PCM 384KHz 32Bit / DSD512 / Femtosecond crystal Better sound performance / Fully discrete op-amps (OPA1642) / Customized power supply Clean, low noise / Full range of interfaces Meet all kinds of equipment connection

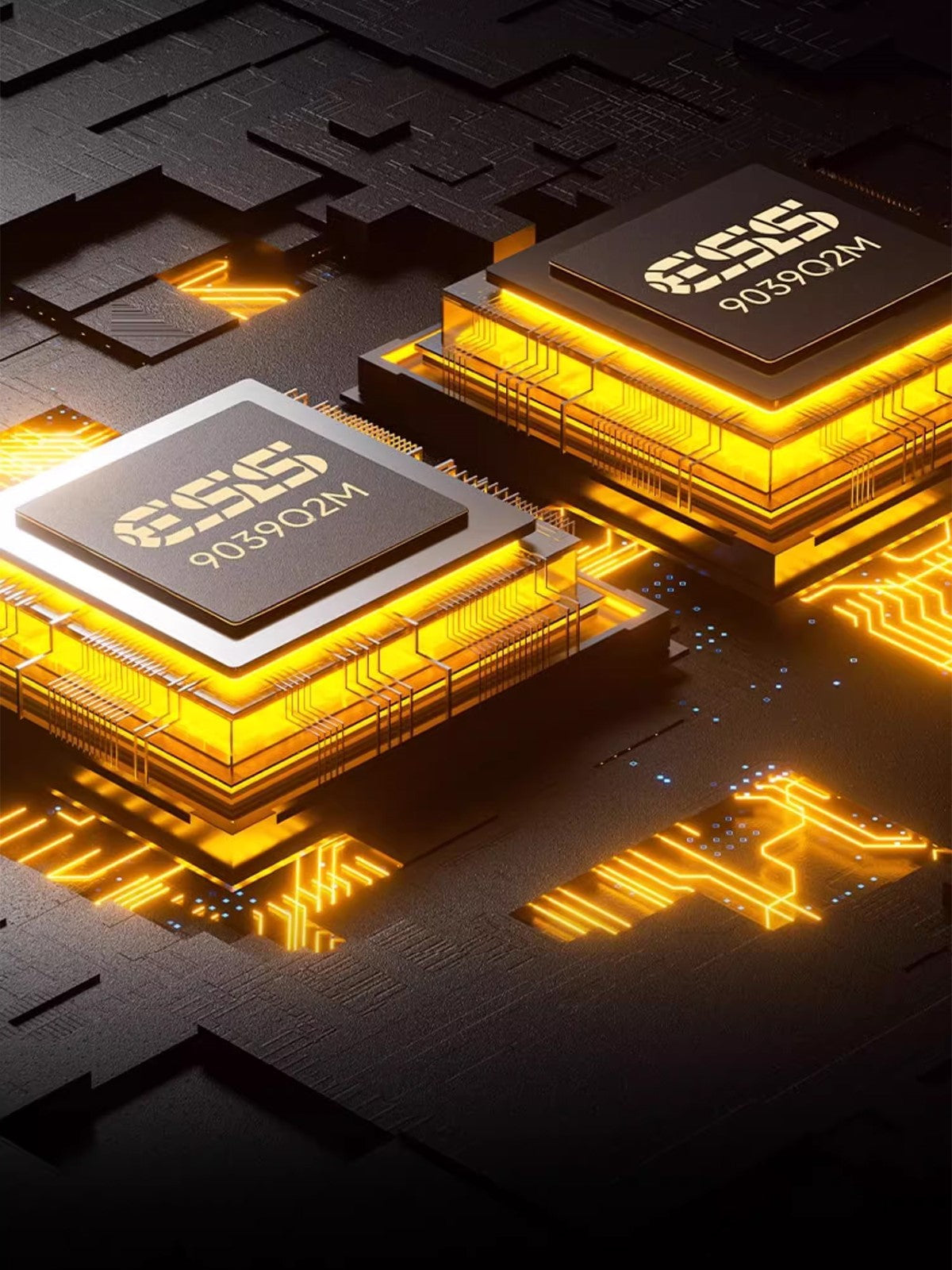

ESS9039Q2M Dual Core Decoding
Adopts dual-chip design so that each way of sound has Independent DAC chip decoding output / The whole system truly realizes the independent high resolution of left and right channels, and enhances the sound effect in all aspects
The key to good sound

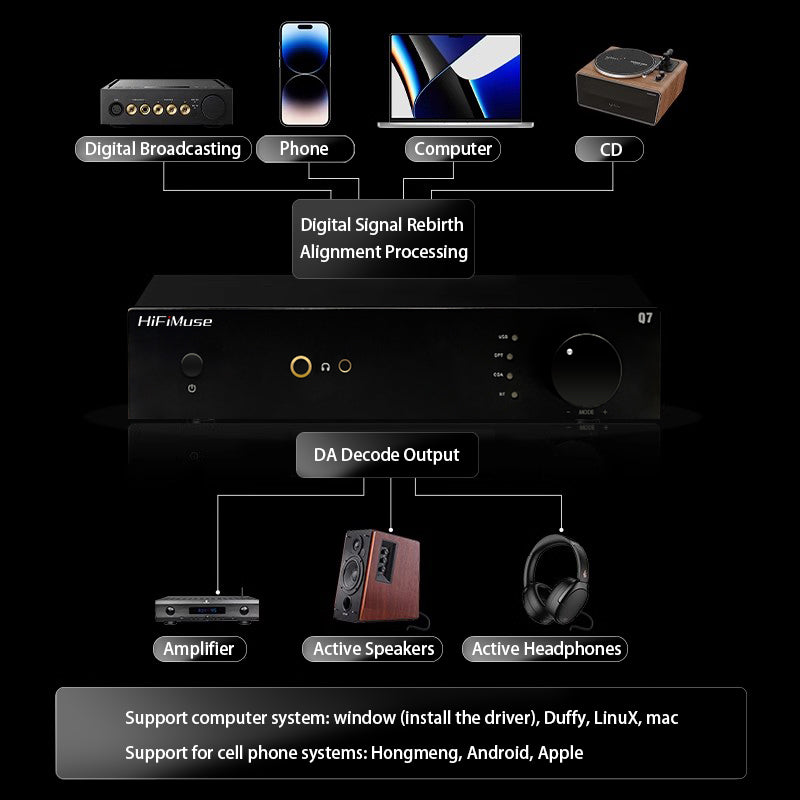

Whether it’s a cell phone/tablet/computer or a digital player/CD player, by connecting the Q7 hard decoding can restore the best sound effect of the source file. It’s not a necessity for listening to music, but it’s certainly the most effective way to improve sound quality
CD-quality Bluetooth sound
Support APTX/APTX-LL/APTX HD/SBC/AAC etc. Bluetooth audio protocol, through the Bluetooth connection with cell phones /tablets/computers Enjoy CD-quality lossless music with ease
Professional Configuration Non-Destructive Guarantee
Q7 adopts the second-generation XMOS-208 processor and three OPA1642 op-amp chips / Effectively guarantee the lossless transmission of high-definition audio / USB supports up to DSD512 and PCM384KHz@32Bit
Professional Configuration Non-Destructive Guarantee
Q7 adopts dual clock management technology, in USB decoding and Bluetooth decoding / Q7 adopts asynchronous dual femtosecond clock for USB decoding and Bluetooth decoding, and asynchronous dual femtosecond clock for optical and coaxial decoding / The auto-calibrated PLL clock makes it easy to handle any music genre / CVHD-950 CRYSTEK femtosecond level crystal oscillator
Dual earphone jacks with monitor grade Earphone circuit design
Fully balanced earphone amplifier circuit design, effectively enhance the headphone amplification circuitry Output power and output quality, can be used as a high-performance decoding earphone amplifier / Support 6.35mm single-ended 16-300 ohm impedance high-end headphones / 4.4mm balanced output can promote 16-600 ohm impedance high-end headphones
Low noise linear power supply Isolated digital power supply with dual power supply design
In order to provide sufficient power to the analog section Q7 uses linear transformer with 3pcs 2200uf+4pcs 1000uf capacitors. full power; the digital part of the isolated power supply, so that it is physically isolated from the analog part of the power supply / Power supply physical isolation, a good shielding of interference, restore the pure sound quality / Low noise power supply / Built-in self-developed low noise switching power supply and multiple analog circuit low noise power supply / Digital and analog isolated power supply

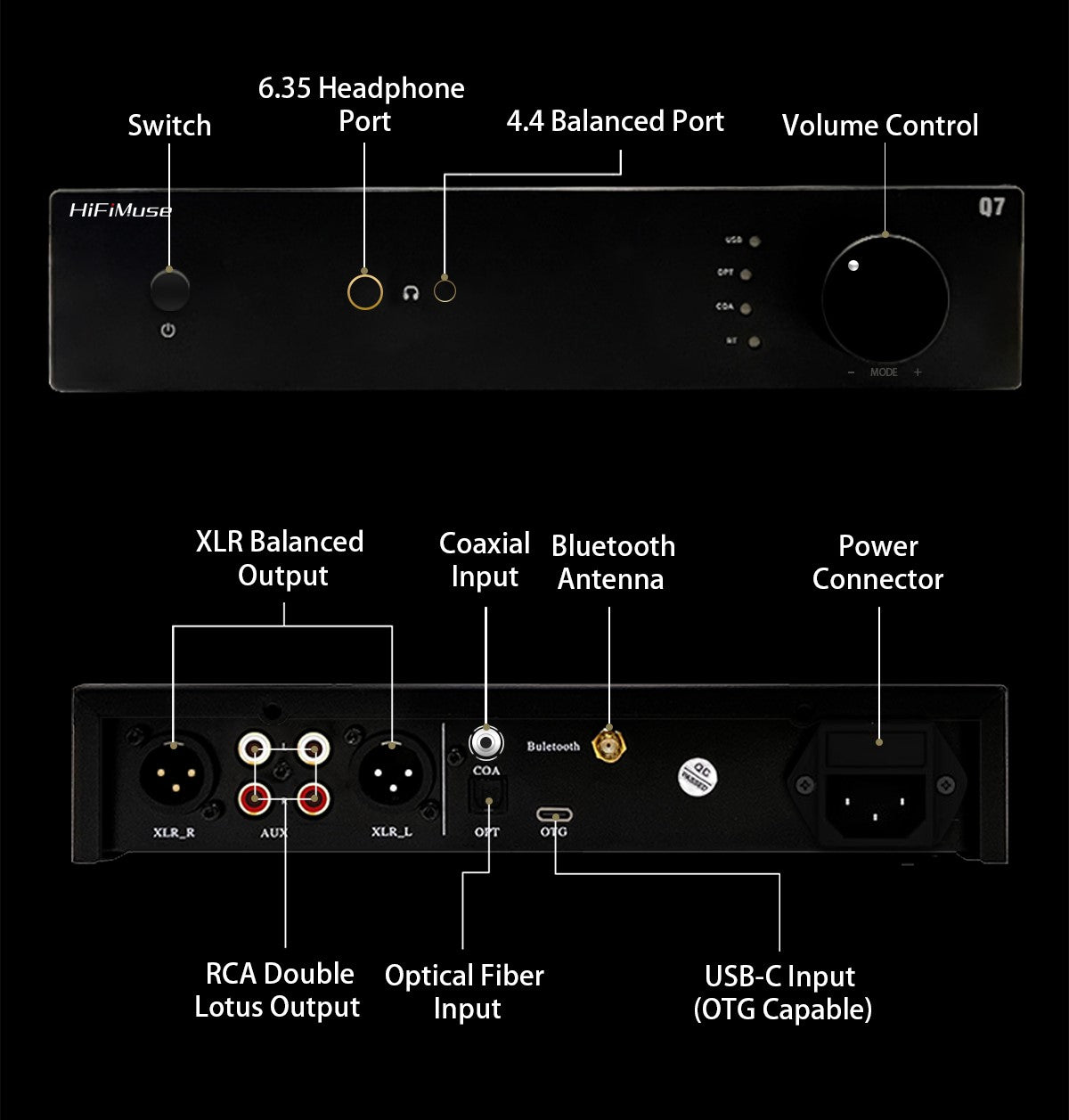

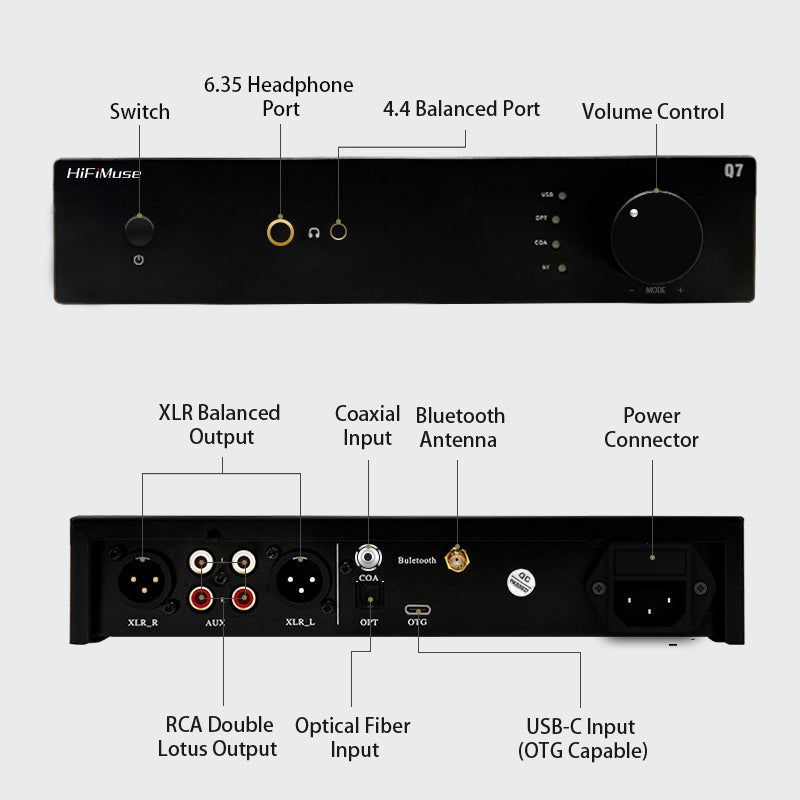

Abundant output and input interfaces Meet all kinds of equipment connection
Voltage 220V/110V adjustable
